Specification
-
Product Description

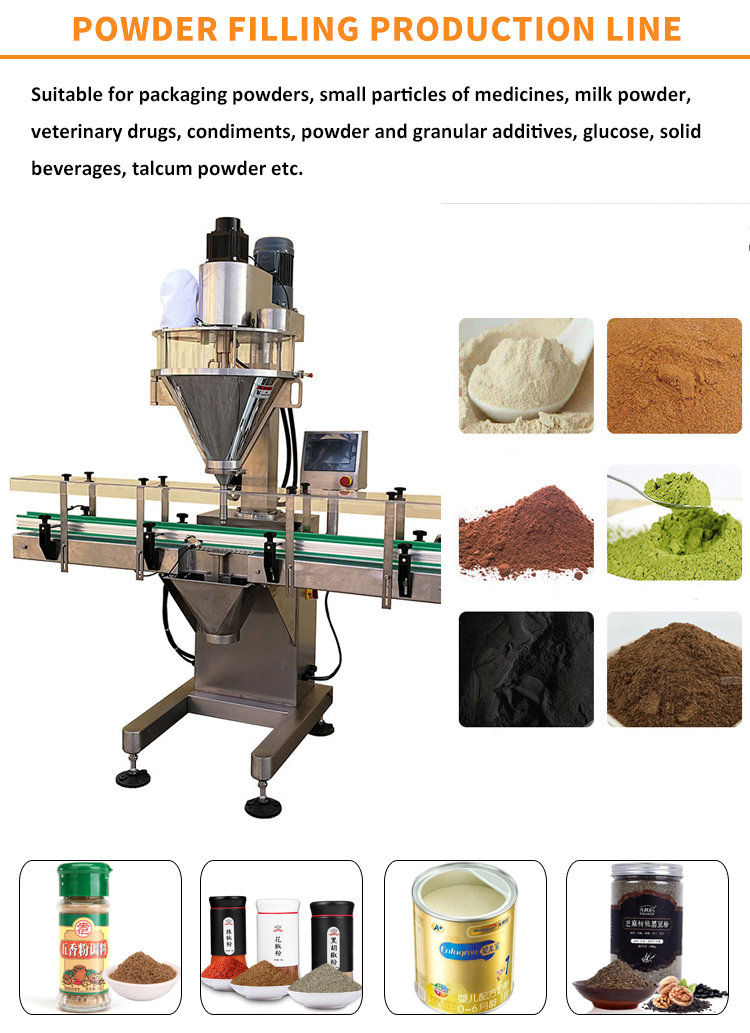

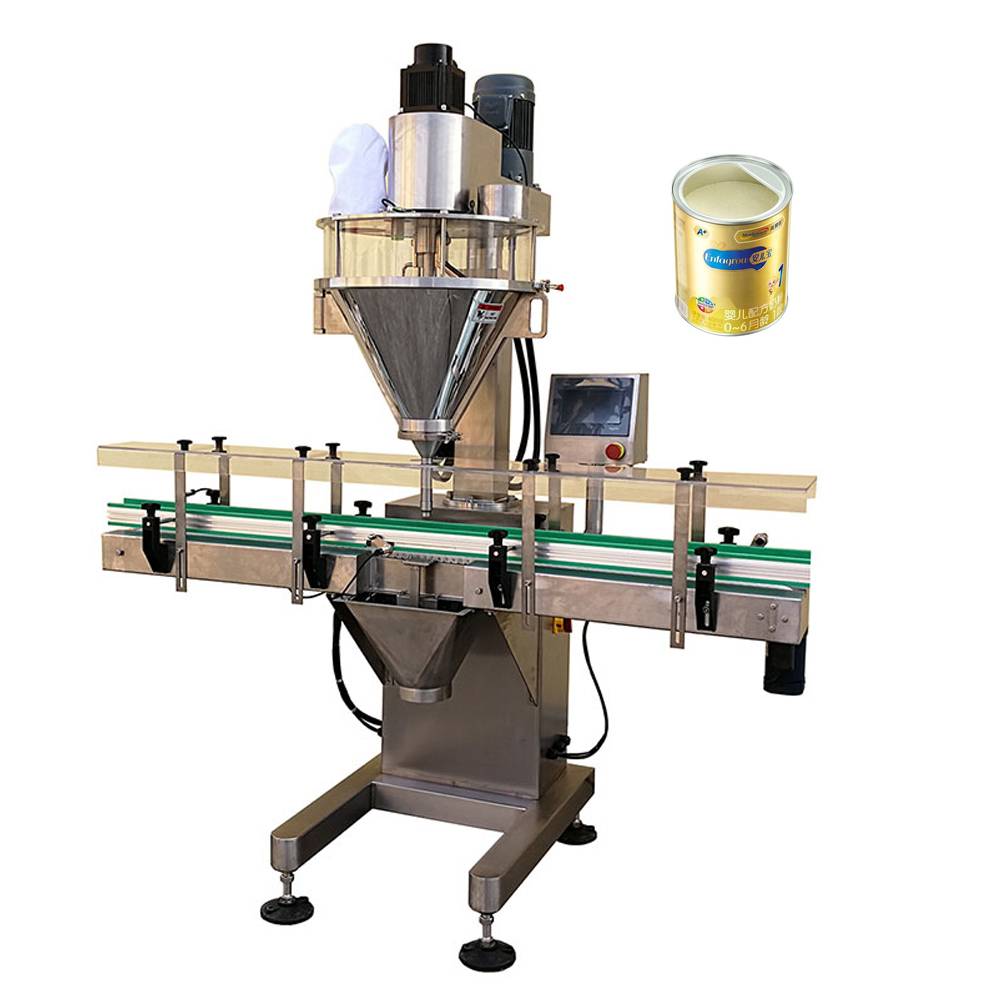

Powder Filling Machine is an economical and practical powder and small particle automatic filling machine, which can complete automatic bottle positioning, filling and metering. It consists of a screw metering machine, a chain conveyor belt and a pneumatic positioning device. It can be combined with bottle unscrambler, capping machine, labeling machine, etc. to form a complete filling line. It is suitable for packaging powders, small particles of medicines, milk powder, veterinary drugs, condiments, powder and granular additives, glucose, solid beverages, talcum powder, pesticides, etc.
Technical Parameter
Product Name Powder Filling Machine-Powder Packing Machine Dosing mode Directly dosing by auger Filling weight 1 – 500g Filling Accuracy 1- 10g, ≤±3-5%;10 – 100g, ≤±2%; 100 – 500g, ≤±1% Filling Speed 15 – 40 bottles per min Power Supply 3P AC208-415V 50/60Hz Air Supply 6 kg/cm2 0.05m3/min Total Power 1.2Kw Total Weight 160kg Overall Dimensions 1500*760*1850mm Hopper Volume 25L(Enlarged Size 35L) -
