Hangzhou Biyou Building Materials Technology Co.,Ltd specialized in manufacture a wide range of weather sealing system and passive fire products. Our products are idea for fire resistance, insulation, smoke sealing and acoustic suppression. We has a group of professional R & D, high-quality products and efficient after-sales service. We have achieved IS9000 certificate, BS/EN/UL Certificate approved by Intertek and other international testing institutions. Most of our products comply with requirements of BS476 part 20-22 and EN BS 1634-3, EN BS13501-2,UL 10C (2009).We have exporting to Europe ,American ,Asia, Middle East as well as other countries.
-
Specification

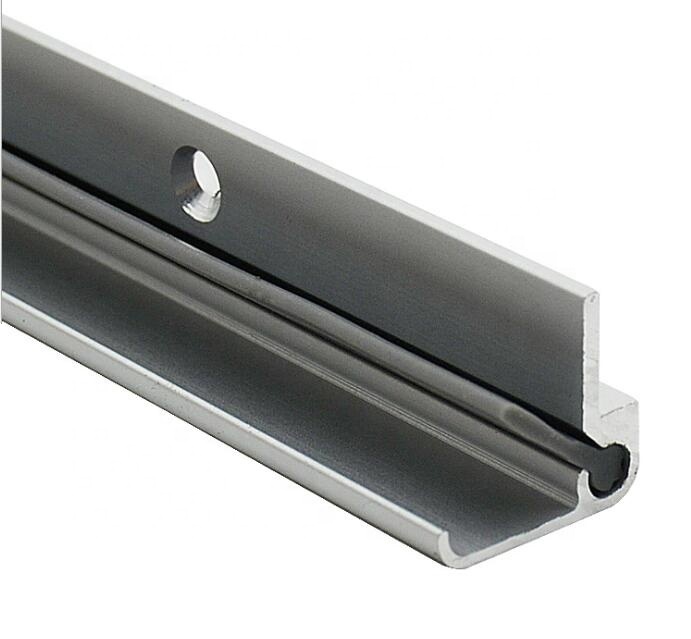

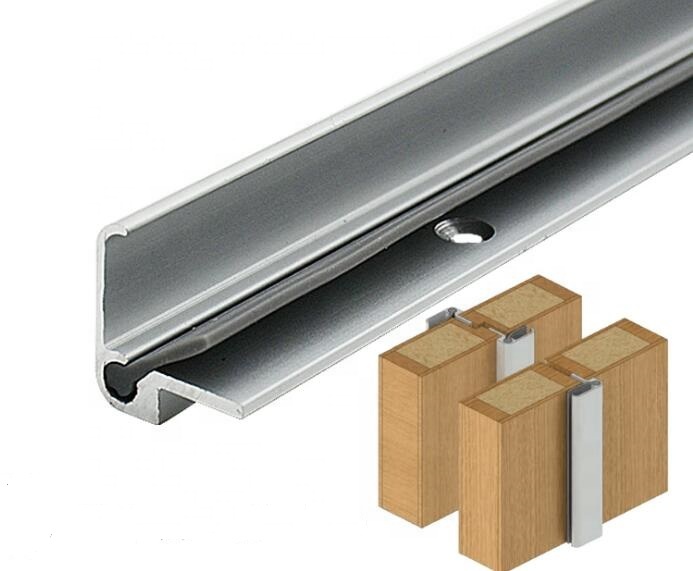

This is an acoustic,smoke astragal. Its proven design is affective in sealing the meeting stiles of plain or rebated double doors.Its aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop.
Product Name
Meeting Stile Seals
Gap(mm)
Min. 2.5mm / max. 8mm
Location
Meeting Stiles of double butt hinged doors
Standard Length (mm)
1100mm,2200mm,2500mm
Standard Color
Silver anodised aluminium with black gasket and grey cover strip
Fixing
Screw fix plated,cross recess head CSK S.T.screws supplied


-
Packing
